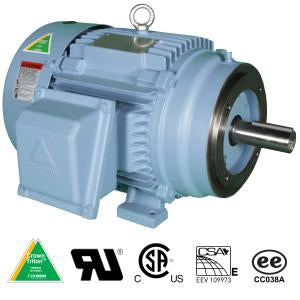

HHI1.5-18-145TC 1.5HP 145TC Premium Efficiency Motor
Regular price
$275.43
Couldn't load pickup availability
This C-face rigid base premium efficiency motor meets NEMA premium efficiency motor standards and offers a quite, low temperature, low vibration design.
| Max Rpm | 1800 RPM (4 Poles) | Hp Rating | 1.5 HP | Voltage | 230 V, 460 V |
| Series | Crown Triton | Motor Application | Severe duty & general purpose applications. | Motor Enclosure Design | TEFC |
| Nameplate Rpm | 1735 RPM | Motor Shaft Rotation | Bi-Directional | Full Load Amps | 2.2 Amps |
| Phase | 3 | Max Ambient Temperature | 40 °C | Shaft Diameter | 7/8'' |
| Shaft Length | 2 1/4'' | Duty | Continuous | Nema Frame | 145TC |
| Frequency | 60 Hz | Mounting | C-Face Rigid base | Keyway Size | 3/16'' |
| Torque Capacity | 4.5 ft-lbs |
