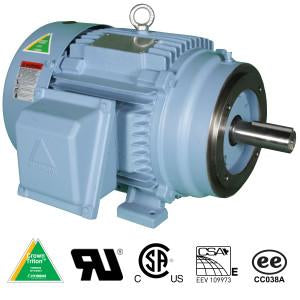

HHI10-18-215TC 10HP 215TC Premium Efficiency Motor
Regular price
$881.74
Couldn't load pickup availability
This C-face rigid base premium efficiency motor meets NEMA premium efficiency motor standards and offers a quite, low temperature, low vibration design.
| Mounting | C-Face Rigid Base |
| Keyway Size | 5/16 |
| Max Rpm | 1800 RPM (4 Poles) |
| Hp Rating | 10 HP |
| Voltage | 230 V, 460 V |
| Torque Capacity | 30 ft-lbs |
| Motor Application | Severe duty & general purpose applications. |
| Motor Enclosure Design | TEFC |
| Nameplate Rpm | 1760 RPM |
| Motor Shaft Rotation | Bi-Directional |
| Full Load Amps | 12.8 Amps |
| Phase | 3 |
| Max Ambient Temperature | 40 °C |
| Shaft Diameter | 1 3/8 |
| Shaft Length | 3 3/8 |
| Duty | Continuous |
| Nema Frame | 215TC |
| Series | Crown Triton |
| Frequency | 60 Hz |
