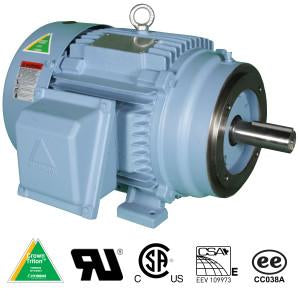

HHI15-18-254TC 15HP 254TC Premium Efficiency Motor

Out of stock
SKU: HHI15-18-254TC
Regular price $1,186.84

This C-face rigid base premium efficiency motor meets NEMA premium efficiency motor standards and offers a quite, low temperature, low vibration design.

Max Rpm 1800 RPM (4 Poles) Hp Rating 15 HP Voltage 230 V, 460 V
Series Crown Triton Motor Application Severe duty & general purpose applications. Motor Enclosure Design TEFC
Nameplate Rpm 1775 RPM Motor Shaft Rotation Bi-Directional Full Load Amps 18.3 Amps
Phase 3 Max Ambient Temperature 40 °C Shaft Diameter 1 5/8''
Shaft Length 4'' Duty Continuous Nema Frame 254TC
Frequency 60 Hz Mounting C-Face Rigid Base Keyway Size 3/8''
Torque Capacity 43.7 ft-lbs
