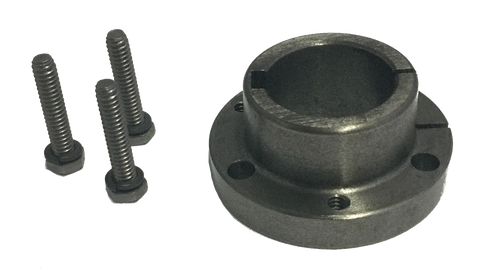

JA X 1 Quick Detachable Bushing with Finished Bore (1" Bore)- JAX1

Out of stock
$5.34

Quick disconnect (QD) bushings feature a completely split design that allows for quick and easy installation and removal.



Split taper bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmission. The double split steel, flanged design makes these bushings more adjustable in regards to shaft size and improves hold strength. The bushing also includes a keyway to help lock it in place on the shaft.



*Weights are approximate and vary based on bore diameter.

Application Mounting of various drive component, including sheaves, pulleys, and sprockets.
Bore Diameter 1
Material Steel
Bore Type Finished with Keyway
Outside Diameter 2”
Length Through Bore 0.89”
Bushing Series JA
Keyway Size 1/4 X 1/8
Bolt Circle Diameter 1 21/32
Torque Capacity 1,000 ft-lbs
Number Of Bolts 3
Bolt Diameter #10-24
Screw Length 1”
Screw Torque 6 in-lbs
