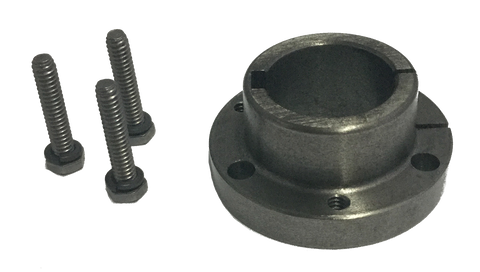

JA X 5/8 Quick Detachable Bushing JA 5/8 with Finished Bore (5/8" Bore)

  • Call for Price

Quick disconnect (QD) bushings feature a completely split design that allows for quick and easy installation and removal.

Split taper bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmission. The double split steel, flanged design makes these bushings more adjustable in regards to shaft size and improves hold strength. The bushing also includes a keyway to help lock it in place on the shaft.

*Weights are approximate and vary based on bore diameter.

Bore Diameter 5/8'' Bore Type Finished with Keyway Length Through Bore 0.89”
Bolt Diameter #10-24 Application Mounting of various drive component, including sheaves, pulleys, and sprockets. Screw Length 1”
Screw Torque 6 in-lbs Material Steel Outside Diameter 2”
Bushing Series JA Keyway Size 3/16'' X 3/32'' Bolt Circle Diameter 1 21/32''
Torque Capacity 1,000 ft-lbs Number Of Bolts 3
