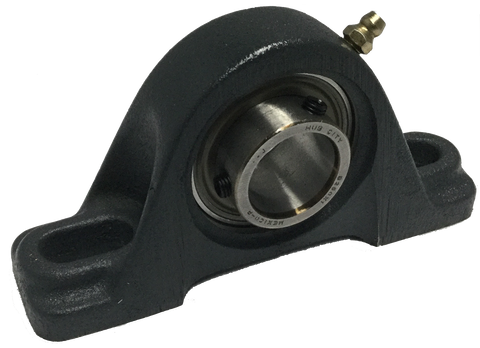

PB251X1 Pillow Block Bearing (1" Bore)
Regular price
$0.00
Couldn't load pickup availability
Industrialine 1001-01009 Pillow Block Ball Bearing Unit - 1.0000 in Bore, Cast Iron Material, Normal Duty, Non-Expansion Bearing (Fixed)
| Length | 5 1/2'' | Bore Diameter | 1'' | Temperature Range | -25° F to 225° F |
| Bore Type | Round | Max Rpm | 3500 RPM | Bolt Diameter | 3/8'' |
| Series | 200 | Seal Type | Contact Seal | Frame | T210 |
| Duty | Normal Duty | Application | General Industrial | Locking Device | Set Screw |
| Insert Material | 52100 Bearing Steel | Insert Bearing Type | Set Screw Lock - Narrow Inner Race | Bearing Type | High Base |
| Compatible Frame Type | Protected Screw | Width | 1 1/2'' | Height | 2 3/4'' |
| Material | Cast Iron | Outside Diameter | 2 1/2'' | Maximum Angular Misalignment | 1 1/2 ° |
| Lubrication Type | #2 Lithium Grease | Expansion Type | Non-Expansion Bearing (Fixed) | Bearing Style | Pillow Block |
