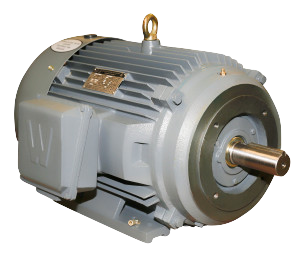

PEWW10-18-215TC 10HP 215TC General Purpose Motor

Out of stock
$827.75

Fractional horsepower motors are comprised of rolled steel and are available with bolt-on plates or C-face designs. This general purpose, 3-phase motor is designed for a vast amount of industrial applications.

Max Rpm 1800 RPM (4 Poles) Hp Rating 10 HP Voltage 230 V, 460 V
Motor Application General Application Motor Enclosure Design TEFC Nameplate Rpm 1760 RPM
Motor Shaft Rotation Bi-Directional Full Load Amps 12.4 Amps Phase 3
Max Ambient Temperature 40 °C Shaft Diameter 1 3/8'' Shaft Length 3 3/8''
Nema Frame 215TC Frequency 60 Hz Mounting C-Face Rigid Base
Keyway Size 5/16''
