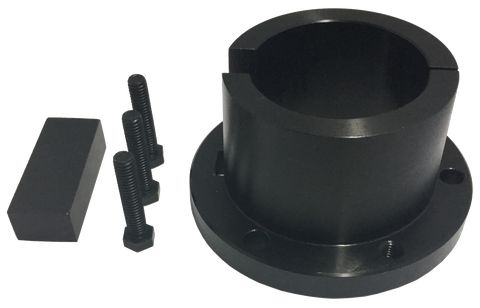

R1 X 3 Split Taper Bushing with Finished Bore (3" Bore)- R1X3
Split taper bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmission. The double split steel, flanged design makes these bushings more adjustable in regards to shaft size and improves hold strength. The bushing also includes a keyway to help lock it in place on the shaft.
*Weights are approximate and vary based on bore diameter.
|Bore Diameter||3''||Bore Type||Finished with Keyway||Length Through Bore||2 7/8”|
|Bolt Diameter||3/8”||Application||Mounting of various drive component, including sheaves, pulleys, and sprockets.||Screw Length||1 3/4”|
|Screw Torque||348 in-lbs||Material||Steel||Outside Diameter||5 3/8”|
|Bushing Series||R1||Bolt Circle Diameter||4 5/8''||Number Of Bolts||3|
