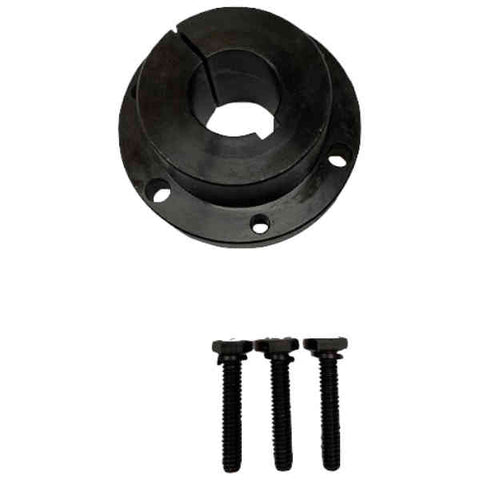

SDSX112 SDS Bushing with Finished Bore (1 1/2" Bore)
Quick disconnect (QD) bushings feature a completely split design that allows for quick and easy installation and removal.
Split taper bushings mount sheaves and sprockets on shafts and are built to withstand torque generated in power transmission. The d
|Bore Diameter||1 1/2''||Bore Type||Finished with Keyway||Length Through Bore||1.33”|
|Bolt Diameter||1/4”||Application||Mounting of various drive component, including sheaves, pulleys, and sprockets.||Screw Length||1 3/8”|
|Screw Torque||9 in-lbs||Material||Steel||Outside Diameter||3 1/8v”|
|Bushing Series||SDS||Bolt Circle Diameter||2 11/16''||Torque Capacity||5,000|
|Number Of Bolts||3|
