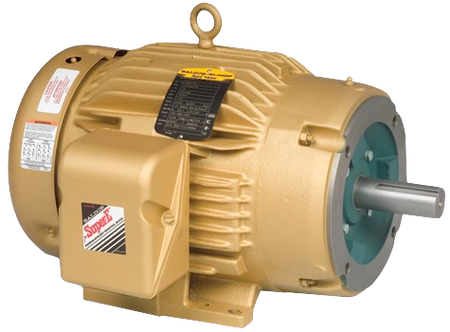

VEM3561 3HP 56C Three-Phase Enclosed Motor

Out of stock
SKU: VEM3561
$598.92

Three-phase enclosed motors are ideal for multiple applications where more than one speed is required.

Length 15.62'' Max Rpm 1800 RPM Hp Rating 3 HP
Voltage 230 V, 460 V Series 3632M Motor Application General Application
Motor Enclosure Design TEFC Nameplate Rpm 1760 RPM Motor Shaft Rotation Reversible
Full Load Amps 4.2 Amps Phase 3 Motor Bearings Ball bearings
Max Ambient Temperature 40 °C Shaft Diameter 5/8'' Shaft Length 1 7/8''
Duty Continuous Nema Frame 56C Frequency 60 Hz
Material Steel Mounting No Mounting Keyway Size 3/16'' X 1 3/8''
